Philco Model 91D (91) Console Radio With Doors (1933)
This beautiful model 91D highboy radio (where the
D perhaps stands for "with doors") was introduced
in the early summer of 1933, priced at $85. It was
an upgrade to an earlier style of the 91D from the
previous June. Several models, including the 17D,
18D and 71D ac-powered models, used this same
six-legged cabinet style for 1933/1934.
This (June 1933) version of the 91D uses the later
two-band version of the 9-tube model 91 chassis.
The early, single-band version of the chassis was
introduced the previous summer as one of the first
Philcos to adopt the newly introduced 6 volt tubes.
The radio tunes the standard broadcast band from
520 -1500 kcs and the police/aircraft band from 1.6
to 3.2mc. It provides a tuned RF stage, automatic-
volume-control (AVC), a bass-compensating 4-point
tone control, a shadow meter for precise tuning and
a push-pull output stage using type 42 pentodes
(wired as pentodes, not class-A triodes as they were
on sets, such as the model 16, that used newer cha-

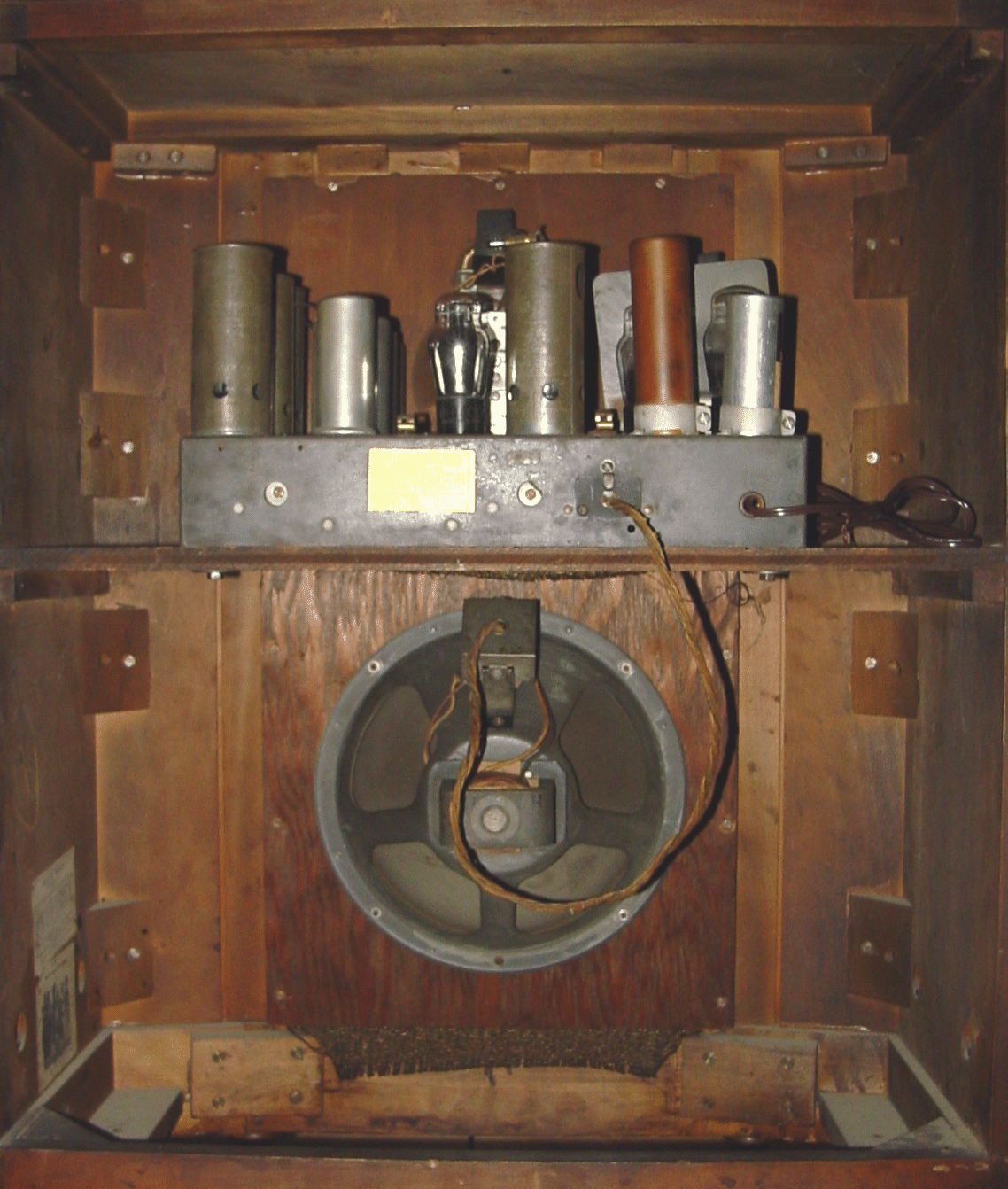

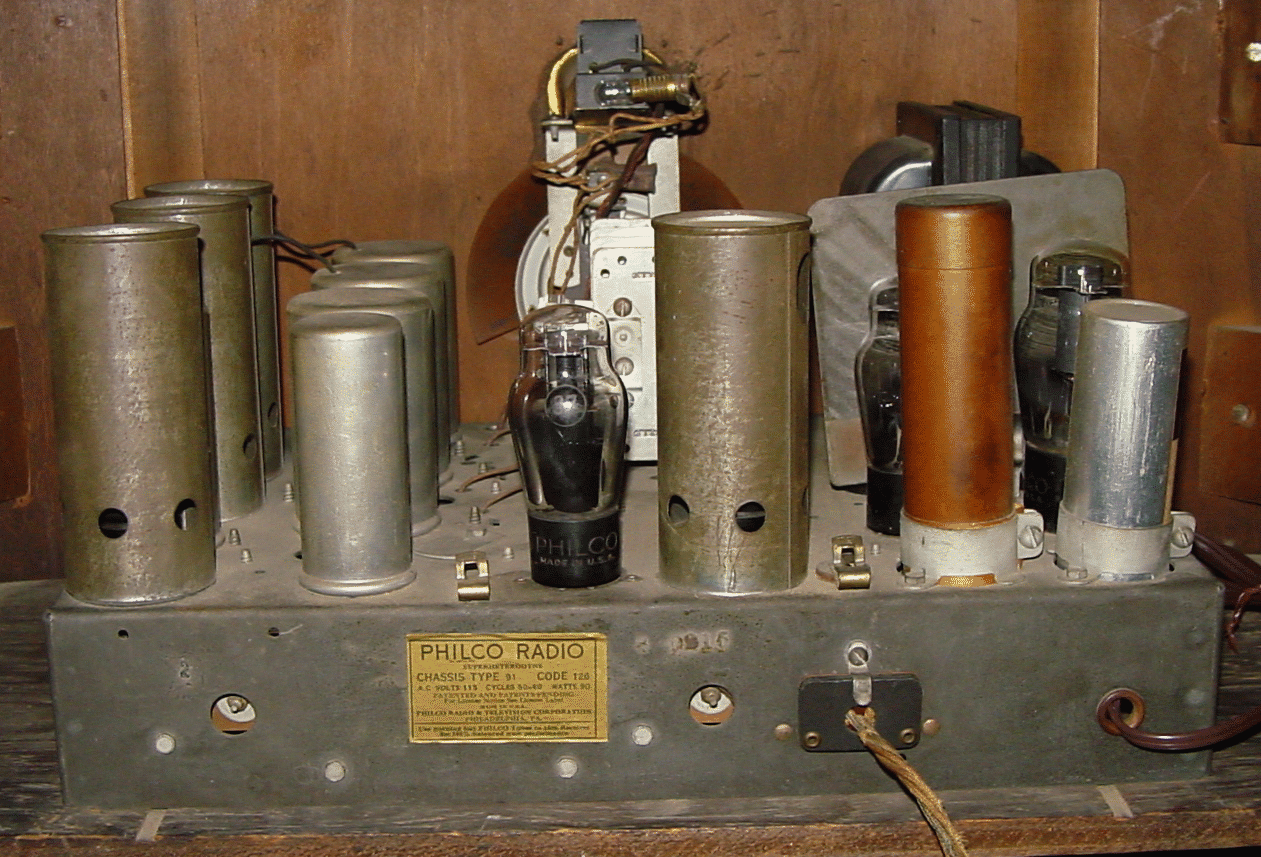

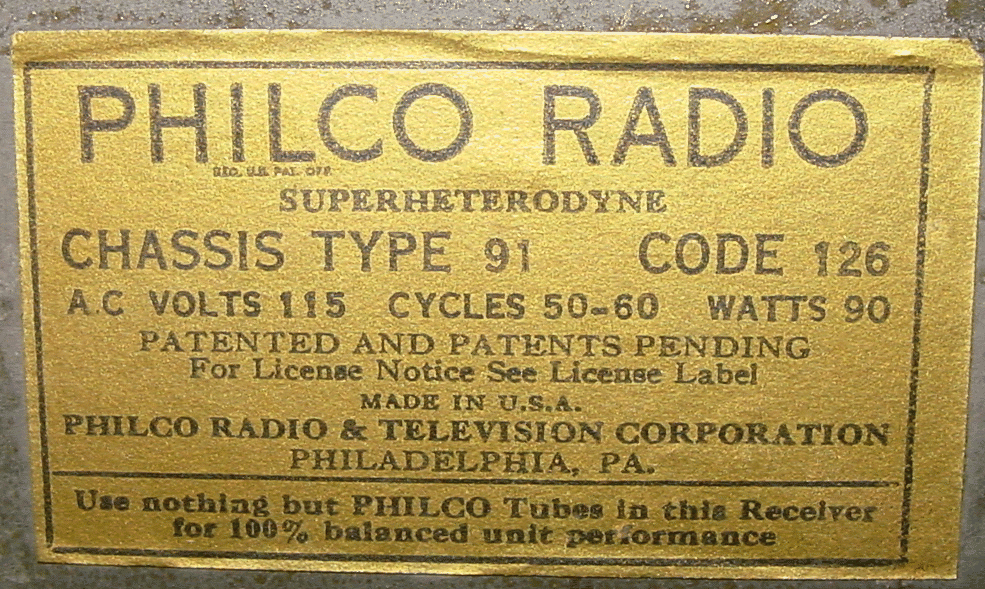

ssis types). Based on the chassis sticker (see bel-
ow), this model employs the code 126 chassis that
drives a single loudspeaker. The 91X Inclined-Sou-
nding-Board model from the same model year em-
ployed the non-inter-changeable dual-speaker
code 226 chassis.
The complete tube line-up is 44 (RF amp), 36
(LO/mixer), 44 (IF), 37 (2nd detector diode-connect-
ed triode), 37 (det amp), 37 (audio driver), 42 * 2
(push-pull outputs), 80 (rectifier). The driver is
transformer-coupled to the output stage. The
schematic is available here, courtesy NostalgiaAir.
The 91 series was a follow-on to the model 90 line
that ran until the spring of the previous year. I
purchased this rare model from an antiques store in
restored condition, exactly as photographed. It is a
tall radio, standing almost 48" high!
D perhaps stands for "with doors") was introduced
in the early summer of 1933, priced at $85. It was
an upgrade to an earlier style of the 91D from the
previous June. Several models, including the 17D,
18D and 71D ac-powered models, used this same
six-legged cabinet style for 1933/1934.
This (June 1933) version of the 91D uses the later
two-band version of the 9-tube model 91 chassis.
The early, single-band version of the chassis was
introduced the previous summer as one of the first
Philcos to adopt the newly introduced 6 volt tubes.
The radio tunes the standard broadcast band from
520 -1500 kcs and the police/aircraft band from 1.6
to 3.2mc. It provides a tuned RF stage, automatic-
volume-control (AVC), a bass-compensating 4-point
tone control, a shadow meter for precise tuning and
a push-pull output stage using type 42 pentodes
(wired as pentodes, not class-A triodes as they were
on sets, such as the model 16, that used newer cha-
ssis types). Based on the chassis sticker (see bel-
ow), this model employs the code 126 chassis that
drives a single loudspeaker. The 91X Inclined-Sou-
nding-Board model from the same model year em-
ployed the non-inter-changeable dual-speaker
code 226 chassis.
The complete tube line-up is 44 (RF amp), 36
(LO/mixer), 44 (IF), 37 (2nd detector diode-connect-
ed triode), 37 (det amp), 37 (audio driver), 42 * 2
(push-pull outputs), 80 (rectifier). The driver is
transformer-coupled to the output stage. The
schematic is available here, courtesy NostalgiaAir.
The 91 series was a follow-on to the model 90 line
that ran until the spring of the previous year. I
purchased this rare model from an antiques store in
restored condition, exactly as photographed. It is a
tall radio, standing almost 48" high!
