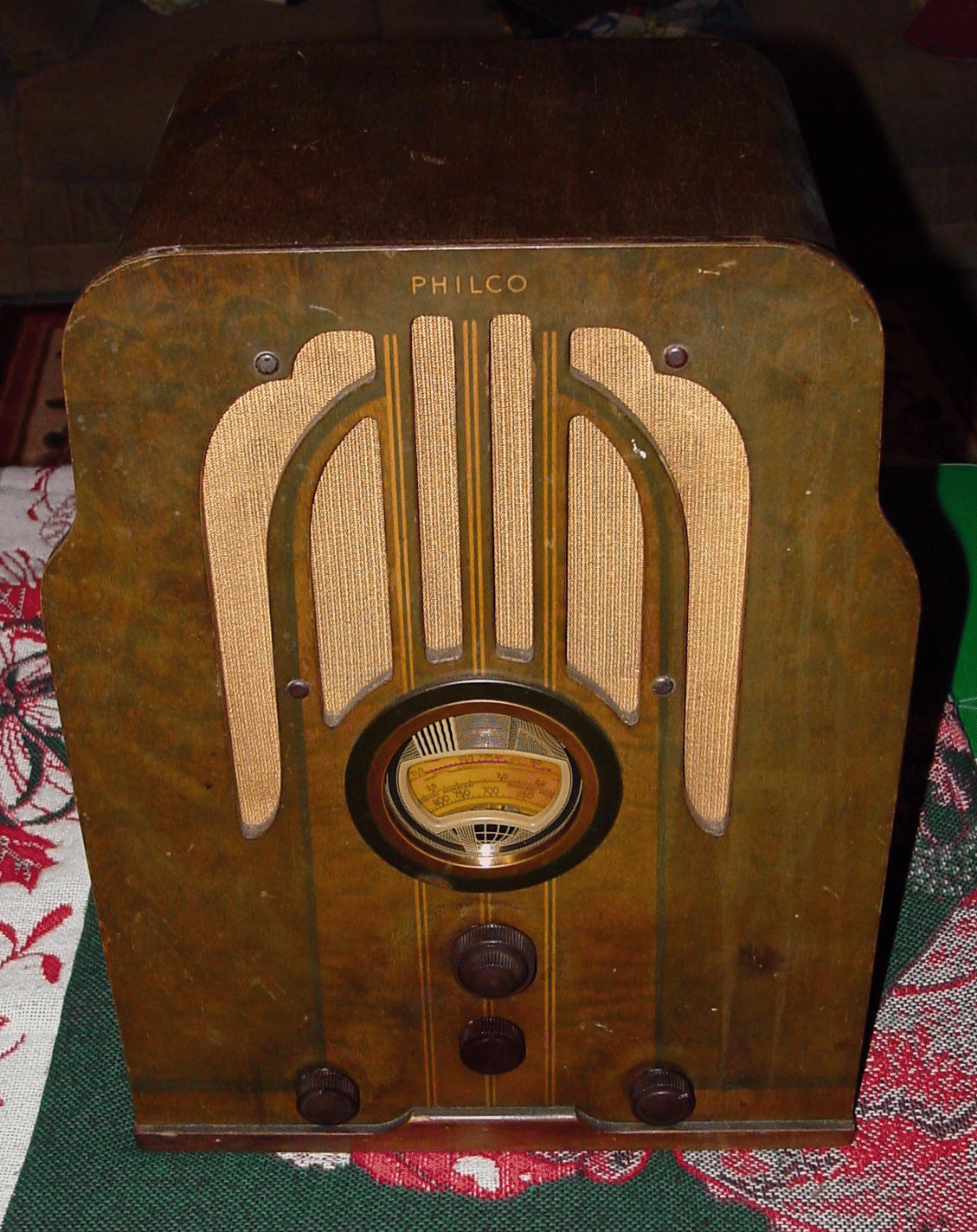

Philco 37-610B Tombstone (early version, June 1936)
This is the early version of Philco's 37-610B Baby Grand
tombstone radio for the 1937 model year. It was introduced
in June of 1936 with a retail price of $42.50. The later style
can be seen here.
These entry-level Baby Grands made extensive use of FAUX
grain on their fascias. Faux grain is essentially a printed patt-
ern used to replicate the appearance of the genuine exotic
veneers found on some of the more expensive sets of the
day. The idea was valiant in its conception but fell short in
practice, as the finish weathered the rigors of time poorly
and even when new, fooled practically nobody. Today, the
finish on many of these sets is badly deteriorated and poses
a challenge for restoration. Luckily, my set's finish is basically
good. It received only minor touch-up from its previous owner.
tombstone radio for the 1937 model year. It was introduced
in June of 1936 with a retail price of $42.50. The later style
can be seen here.
These entry-level Baby Grands made extensive use of FAUX
grain on their fascias. Faux grain is essentially a printed patt-
ern used to replicate the appearance of the genuine exotic
veneers found on some of the more expensive sets of the
day. The idea was valiant in its conception but fell short in
practice, as the finish weathered the rigors of time poorly
and even when new, fooled practically nobody. Today, the
finish on many of these sets is badly deteriorated and poses
a challenge for restoration. Luckily, my set's finish is basically
good. It received only minor touch-up from its previous owner.
Philco 37-610B.... flat-top Baby Grand
| "This flat-top Baby Grand features authentic reproductions of light golden-toned butt walnut, gorgeous burl walnut, and straight grained American Walnut. A striking contrast is afforded by the dark-toned base moulding". |
50% greater Separation on short-wave stations
Three Tuning Ranges cover Standard American
Broadcasts... State and Municipal Police... Daytime and
Night-time Foreign and American Short-Wave Broadcasts...
Aviation... Ship... Daytime and Night-time First-Class
Amateur Bands.
Three Point Tone Control to adjust the program to receive
every program at its best (A) Brilliant - for speech (B)
Mellow - for music (C) Deep - Noise reducing - for distant
reception.
Philco Foreign Tuning System
Philco Color Dial names and locates foreign stations for
convenient, accurate, rapid tuning!
14 Tuned Circuits with Philco High-Efficiency Aerial
Pentode Audio System
Philco Oversize Electro-Dynamic Speaker
Glowing Beam Tuning Range Indicator shows the tuning
range in use
Philco Balanced Superheterodyne Circuit with 5 Philco
Self-Centering Octal Base High-Efficiency Tubes
Two Speed Vernier Tuning... Variable Bass
Compensation... Greater Overall Selectivity... Philco
Unit Construction... Automatic Volume Control... and all
the basic Philco features!
Three Tuning Ranges cover Standard American
Broadcasts... State and Municipal Police... Daytime and
Night-time Foreign and American Short-Wave Broadcasts...
Aviation... Ship... Daytime and Night-time First-Class
Amateur Bands.
Three Point Tone Control to adjust the program to receive
every program at its best (A) Brilliant - for speech (B)
Mellow - for music (C) Deep - Noise reducing - for distant
reception.
Philco Foreign Tuning System
Philco Color Dial names and locates foreign stations for
convenient, accurate, rapid tuning!
14 Tuned Circuits with Philco High-Efficiency Aerial
Pentode Audio System
Philco Oversize Electro-Dynamic Speaker
Glowing Beam Tuning Range Indicator shows the tuning
range in use
Philco Balanced Superheterodyne Circuit with 5 Philco
Self-Centering Octal Base High-Efficiency Tubes
Two Speed Vernier Tuning... Variable Bass
Compensation... Greater Overall Selectivity... Philco
Unit Construction... Automatic Volume Control... and all
the basic Philco features!
"Three Tuning Ranges... Glowing Beam Tuning Range
Indicator AND the PHILCO Foreign Tuning System"
Indicator AND the PHILCO Foreign Tuning System"
| 610 American and Foreign Receiver |
The 37-610B is a 5-tube AC-powered superheterodyne
covering the three bands:- 530 - 1720kc (Standard Broad-
cast), 2300 - 7400kc (short-wave 1) and 7.35 - 22mc (short-
wave 2). The tube line-up is 6A8G (mixer/LO), 6K7G (IF),
6Q7G (2nd det/AVC/1st AF amp), 6F6G (AF output) & 5Y4G
(rectifier). The undistorted output power developed into the
loudspeaker is 3 Watts. The 37- 610B uses the code 121
chassis, whose schematic may be found here, courtesy of
NostalgiaAir.org.
The code 121 chassis serves also for the 37-610J console
radio (photo at philcoradio.com). The 37-610T table set
embodies the code 122 chassis, having the rectifier tube re-
located from the power transformer bell housing to the chas-
sis in order to accommodate the reduced internal height of
that set's bullet-shaped cabinet. Otherwise the code 121 and
122 chassis types are identical.
covering the three bands:- 530 - 1720kc (Standard Broad-
cast), 2300 - 7400kc (short-wave 1) and 7.35 - 22mc (short-
wave 2). The tube line-up is 6A8G (mixer/LO), 6K7G (IF),
6Q7G (2nd det/AVC/1st AF amp), 6F6G (AF output) & 5Y4G
(rectifier). The undistorted output power developed into the
loudspeaker is 3 Watts. The 37- 610B uses the code 121
chassis, whose schematic may be found here, courtesy of
NostalgiaAir.org.
The code 121 chassis serves also for the 37-610J console
radio (photo at philcoradio.com). The 37-610T table set
embodies the code 122 chassis, having the rectifier tube re-
located from the power transformer bell housing to the chas-
sis in order to accommodate the reduced internal height of
that set's bullet-shaped cabinet. Otherwise the code 121 and
122 chassis types are identical.
