Philco Model 37-60B (37-60) Cathedral Radio (June 1936)
Introduced in June of 1936 at $33.50, the model 37-60B
continued a long line of Philco model 60 cathedral rad-
ios, dating back to 1933. It was one of several new cath-
edral models offered by Philco for 1937. Significantly,
the set would prove to be the end of the line for the
model 60B, and moreover, 1937 would prove to be the
last year Philco manufactured any cathedral radio, thus
ending a long line of models that had begun in 1930
with the ubiquitous model 20. It was the end of an era.
The 37-60B is a 5 tube receiver covering the broadcast
band from 530 to 1720kcs and the shortwave band from
2.3 to 7.4mcs. The tube line-up is 6A8G (LO/mixer),
6K7G (IF), 6Q7G (2nd detector/AGC/1st AF), 6F6G
(power output), 5Y4G (rectifier). Schematic.
Sister model 37-61B is almost identical to the 37-60B,
except that it provides extended shortwave coverage of
5.7 to 18.2mcs versus 2.3 to 7.4mcs for the 60B. The
61B can be distinguished from the 60B in that it employs
a dual knob tuning mechanism, comprising concentric
fine and coarse controls rather than the 60B's single
knob. Other than that, the cabinets look identical.
Early in my collecting days I bought this model 37-60B
from an antiques store for a very reasonable price even
though something didn't seem quite right about it. Some

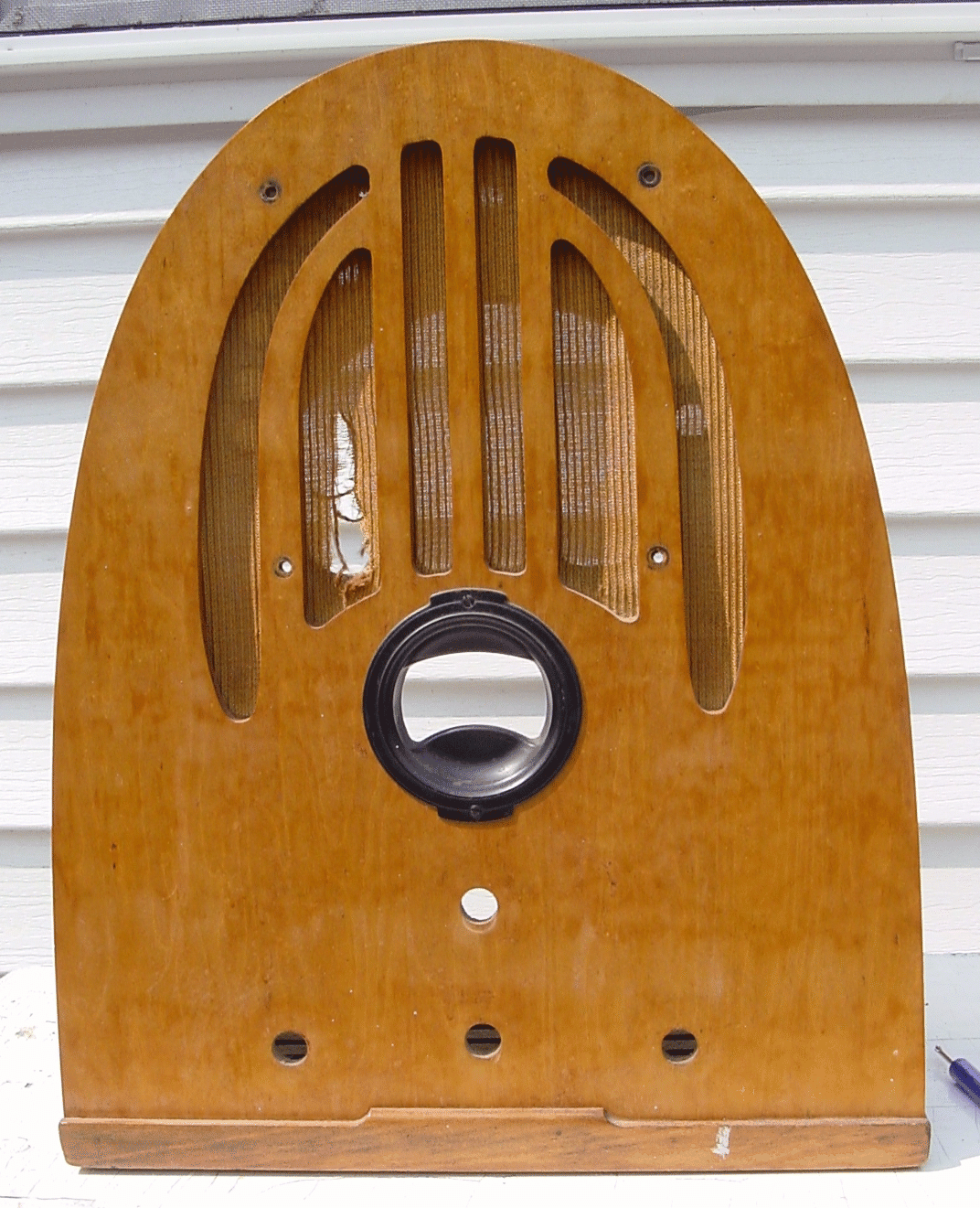

time later, I discovered that as purchased it had been
stripped of its FAUX finish (photo lower right). Oh well, I
thought, you live and learn. However, this story has a
happy ending, because some years later I came across
an empty case for it that was in good original condition,
for just a few bucks.
continued a long line of Philco model 60 cathedral rad-
ios, dating back to 1933. It was one of several new cath-
edral models offered by Philco for 1937. Significantly,
the set would prove to be the end of the line for the
model 60B, and moreover, 1937 would prove to be the
last year Philco manufactured any cathedral radio, thus
ending a long line of models that had begun in 1930
with the ubiquitous model 20. It was the end of an era.
The 37-60B is a 5 tube receiver covering the broadcast
band from 530 to 1720kcs and the shortwave band from
2.3 to 7.4mcs. The tube line-up is 6A8G (LO/mixer),
6K7G (IF), 6Q7G (2nd detector/AGC/1st AF), 6F6G
(power output), 5Y4G (rectifier). Schematic.
Sister model 37-61B is almost identical to the 37-60B,
except that it provides extended shortwave coverage of
5.7 to 18.2mcs versus 2.3 to 7.4mcs for the 60B. The
61B can be distinguished from the 60B in that it employs
a dual knob tuning mechanism, comprising concentric
fine and coarse controls rather than the 60B's single
knob. Other than that, the cabinets look identical.
Early in my collecting days I bought this model 37-60B
from an antiques store for a very reasonable price even
though something didn't seem quite right about it. Some
time later, I discovered that as purchased it had been
stripped of its FAUX finish (photo lower right). Oh well, I
thought, you live and learn. However, this story has a
happy ending, because some years later I came across
an empty case for it that was in good original condition,
for just a few bucks.
ANOTHER YEAR... And it's still the fastest-selling model in the world!
| "Interest centers in the instrument panel... a Philco reproduction of matched burl, butt and straight grained American walnut inlaid with holly and black. The top and end panel is of rotary walnut, the base mouldings of a darker contrasting tone, and the bezel, speaker grille and knob spacing all work together to achieve a harmonious effect. Satin finish. 17" High 135/8" Wide 91/8" Deep" |
| Philco Balanced Superheterodyne Circuit with 5 Philco Self-Centering Octal Base High-Efficiency tubes Eight Tuned Circuits Pentode Audio System Two Point Tone Control. (A) Speech (B) Music Standard Philco Electro-Dynamic Speaker Wide Vision Dial. A great convenience and an aid to accurate tuning. Glowing Beam Station Finder Two Tuning Ranges cover Standard American Broadcasts... State and Municipal Police... Night and Day Aviation... Night First-Class Amateur... some American and Night Foreign Short-Wave Broadcasts. Adapted for use with the Philco High-Efficiency Aerial. The more efficient the aerial, the more efficient the set, and to get the best results from the Philco 60, the use of the Philco High-Efficiency Aerial is strongly recommended. Reduction Gear Tuning... Greater overall Selectivity... Philco Unit Construction... Automatic Volume Control |
135/8" (W) * 91/8" (D) * 17" (H)
