Belmont Model 6-D-111 Painted Bakelite Radio (1946)

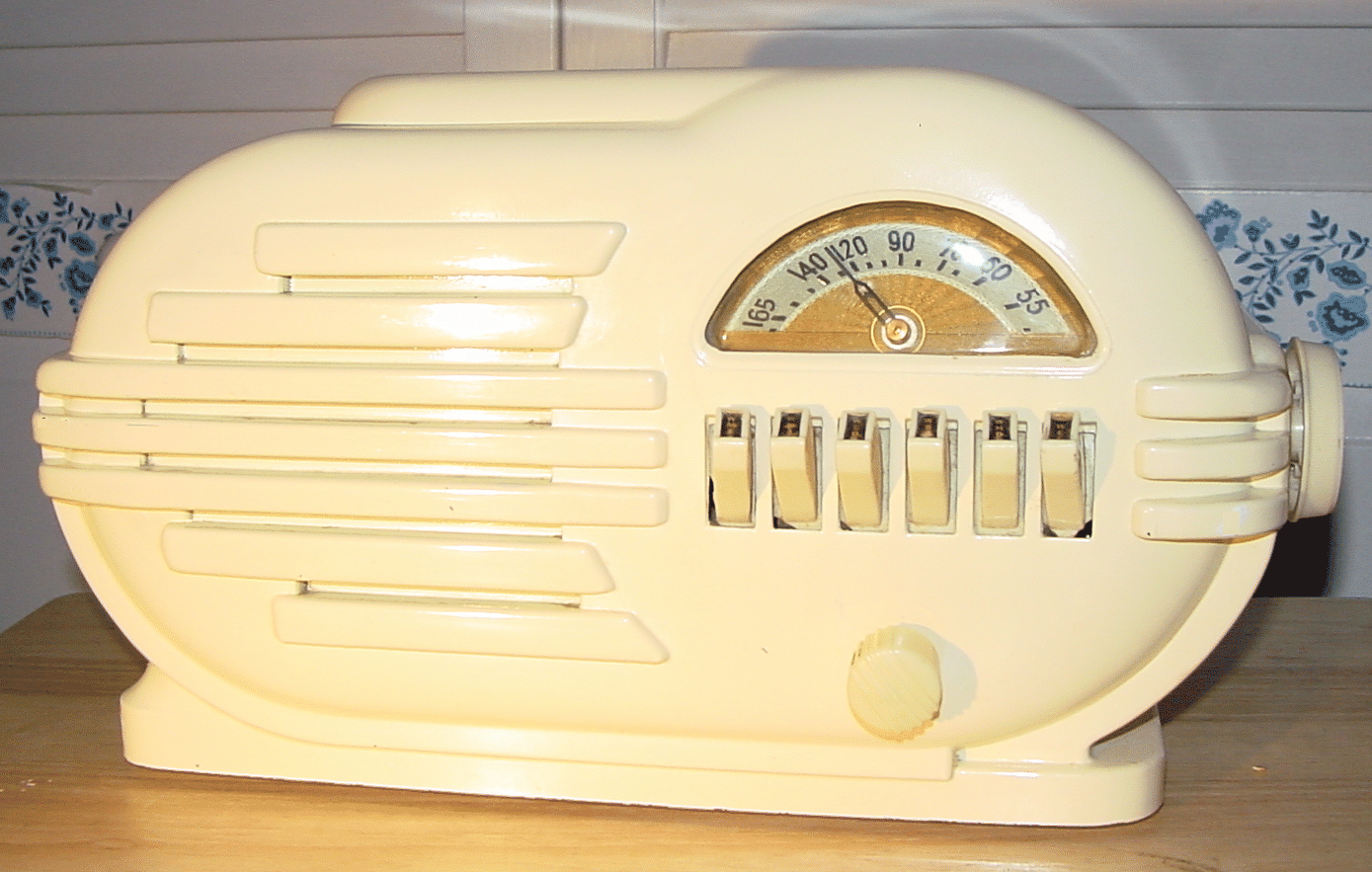

This radio is popularly known
as the "Belmont rabbit"
(because of the "ears" along
the top), though I tend to think
that it looks more like a "pig"
because of the resemblance of
the right-side knob to a pig's
snout. This particular example
features a 6-tube series-B
chassis that covers the
standard-broadcast band from
530 - 1650kc. The tube line-up
is 12SK7 (RF amp), 12SA7
(mixer/LO), 12SK7 (IF), 12SQ7
(2nd detector/AVC/1st AF
amp), 35L6GT (AF power
amp), 35Z5GT (rectifier).
Two similar versions were
produced, one making its
appearance just before and
the other just after WWII.
as the "Belmont rabbit"
(because of the "ears" along
the top), though I tend to think
that it looks more like a "pig"
because of the resemblance of
the right-side knob to a pig's
snout. This particular example
features a 6-tube series-B
chassis that covers the
standard-broadcast band from
530 - 1650kc. The tube line-up
is 12SK7 (RF amp), 12SA7
(mixer/LO), 12SK7 (IF), 12SQ7
(2nd detector/AVC/1st AF
amp), 35L6GT (AF power
amp), 35Z5GT (rectifier).
Two similar versions were
produced, one making its
appearance just before and
the other just after WWII.
